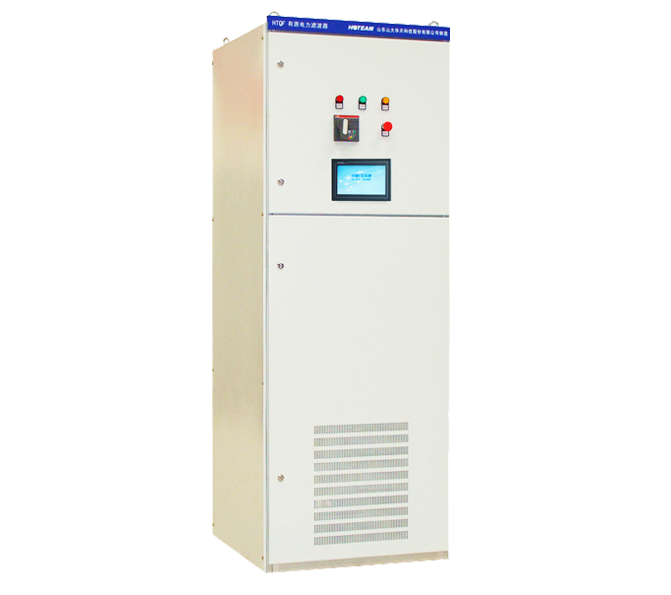

Active Harmonic Filters

•

Harmonic Filters - Active Harmonic Filters are used to maintain the stability in power quality supply by eliminating  harmonics. We offer the best quality Active Harmonic Filters to our patrons which are manufactured using top quality raw material procured from trusted sources under the surveillance of qualified professionals by skilled technicians and labourers. The products are fabricated in our latest technology equipped manufacturing units and go through a range of quality tests before being moved towards packaging. IGBT based Active Harmonic filter Banks are designed to solve the faults and the unbalanced current itself at 50 Hz achieving practically neutral currents, which may occur in a four wire, three phase installation. We offer international quality products at competitive prices. Our relation does not end with providing products, we also offer after-sales services for the convenience of our patrons.




Features

1. Response to disturbance in power supply in less than 300 micro seconds
2. Filter Performance
3. Suitable for Industrial use
4. Adaptive – Active Filter compensates for individual disturbances patterns in a targeted manner and automatically adapts to changing network topologies.
5. Highly demanded
6. Heavy-duty
7. Accurate designs
8. Phase current balance.
9. Power factor correction.



Technical Specifications of Active Harmonic Filter

Power Supply Voltage	360…400 V ac
Frequency	47…63 Hz
Connection	3 phase + neutral (4 wire)
Function	Correction Of: Up to 21st harmonics Current unbalance Reactive power
Switching frequency	10 Hz
Losses	15 W/A
EMI tests	EN- 50081-1, EN-50081-2, Class A
ENVIRONMENTAL CONDITIONS
Operating temperature	35° C
Relative humidity	80% sin condensation
