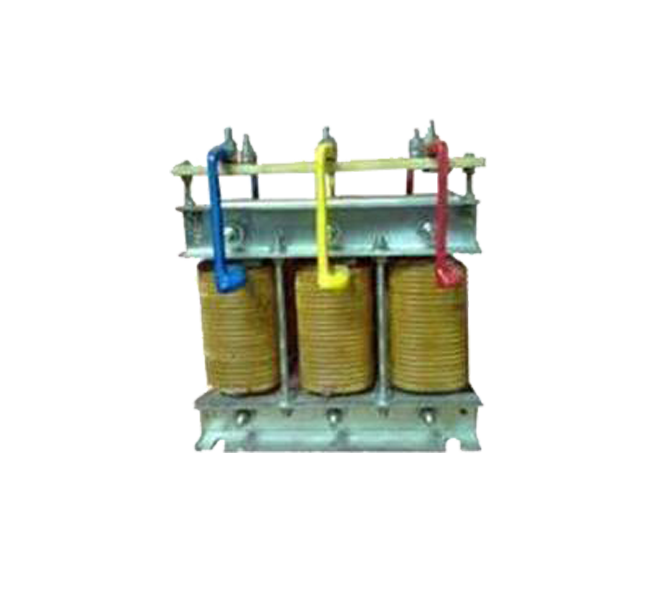

Tuned Harmonic Filters - We are well versed in manufacturing scientifically advanced Tuned Harmonic Filters of superior quality, which are designed to tune harmonic level of the power supply for the smooth performance of the appliances and machineries. Power Transmission and Distribution networks are designed to operate with sinusoidal voltage and current having constant frequency. However, there are number of non-linear loads, such as thyristor drives and converters, which generate harmonics on the network, causing distortion in the voltage and current waveforms. Harmonic filters are usually formed by series filter reactor capacitive below its running frequency, whereby they also contribute, even if in a small scale, to the reactive power compensation at the fundamental frequency. These are made of best quality raw material procured from trusted sources. The products are fabricated under the surveillance of qualified professionals by skilled technicians and labourers using the advanced technology.
| Operating Voltage | Up to 440 V |
| Frequency | 50/60 Hz |
| Nominal Current (IR) | 6…100 A |
| Current max. transitory | 1,5 In (1 min.of each 10 min.) |
| Construction | Metal Cabinet |
| Degree Of Protection | IP 00/IP 21 |
| Temperature Range | -10° to +50° C |
| Relative Humidity | 95.00% |
